Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver

Name: Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver
Brand: Temei
Price: 5999 USD

Buy cheap Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver product

Place of Origin : china shenzhen

Brand Name : Temei

Model Number : T9-L1390S

MOQ : 1

Price : 5999usd~10999usd

Packaging Details : wooden box

Delivery Time : 7 to 15 days

Payment Terms : T/T

Supply Ability : 1,000 units per month

Name : CO2 laser cutting machine

Model : 1300x900mm

Laser Source : CO2 Laser Tube

Laser Power : 130W/150W/180W/200W/300W/450W

Positioning Accuracy : 0.02mm

Repet.Positioning Accuracy : 0.01mm

Max.Cutting Thickness : 30mm (acrylic,plywood,rubber,MDF)

Power supply : 220V,50/60Hz

File format : DXF, PLT, AI, DST, DSB

Net Weight : 500kgs

Application Materials : Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc.

Dimensions : 1750x1650x1150 mm

Contact Now

T9-L1390Wood board CO2 laser cutting machine Bamboo board cutting Composite panel cutting

The 1390 CO₂ Laser Cutting Machine stands out as a flexible, high-performance device built for accurate cutting and engraving across diverse materials. Boasting extensive practical uses and easy-to-operate functions, it has become an essential piece of equipment for workshops and production sites alike.

A major advantage of this CO₂ laser cutting and engraving device lies in its ability to work with numerous material types. It handles tasks involving acrylic, wood, leather, fabric, paper, and other substances smoothly—making it highly suitable for sectors like sign-making, packaging, textile processing, and woodworking due to this adaptability.

Backed by cutting-edge tech, this CO₂ laser engraving and cutting unit supports multiple graphic file formats such as PLT, DXF, BMP, AI, DST, and DWG. This compatibility lets users effortlessly import their designed patterns and shapes, ensuring accurate cutting and engraving on the selected material.

Fitted with a robust laser system, this CO₂ laser metal-cutting device provides laser power choices of 150W, 200W, 300W, and 450W to meet different user requirements. Whether the task calls for intricate engraving work or fast-paced cutting operations, it delivers excellent outcomes thanks to its precise and efficient laser technology.

Bamboo Board Co2 Laser Cutter Machine 1300x900mm MDF Co2 Laser Engraver

Cutting Thickness Parameters

Material Thickness	Processing Speed (mm/s)	Processing Power
1mm	60-70	35-40
3mm	50-60	50-60
5mm	35-40	60-65
8mm	17-23	60-65
10mm	12-17	60-65
12mm	10-14	65-70
15mm	6-8	65-70
20mm	2.5-4	65-70
30mm	1.4-1.8	65-70

Note: The above parameters are for reference only. The cutting effect may vary based on material quality. Please adjust power and speed according to actual conditions.

Configuration and Parameters

Name	CO2 laser cutting machine
Model	T9-L1390S
Working Size	1300x900mm
Laser Source	CO2 Laser Tube
Laser Power	130W/150W/180W/200W/300W/450W
Cooling Method	S&A CW-5200/6000/6200 Chiller

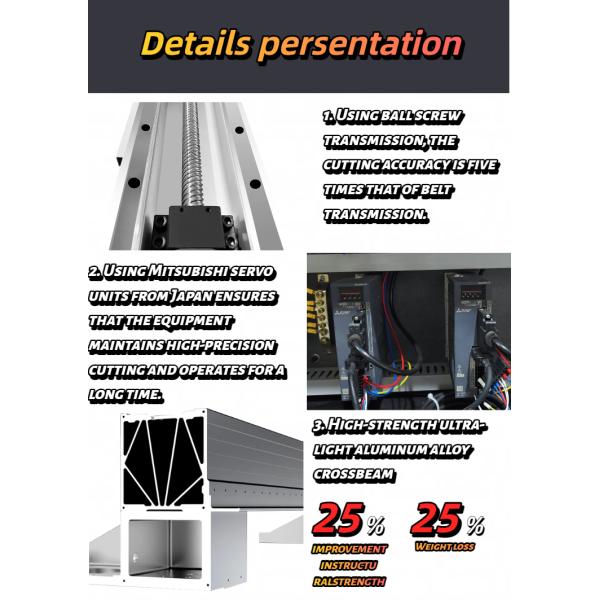

Drive System	Mitsubishi Servo Driver & Motor from Japan
Transmission System	TBI Ball Screw & PMI Linear Guide from Taiwan
Control System	Ruida RDC6442/RDV6445
CCD edge patrol cutting function:	Optional
Double cutting head	Optional
Positioning Accuracy	0.02mm
Repet.Positioning Accuracy	0.01mm
Max.Speed	≤40m/min
Max.Cutting Thickness	30mm (acrylic,plywood,rubber,MDF)
Working table	Blade platform / Cellular platorm (optional)
Red-dot Positioning	Yes
Auxiliary Equipment	Air pump,Centrifugal fans(1.1kw)
Power supply	220V,50/60Hz
File format	DXF, PLT, AI, DST, DSB
Dimensions	1750x1650x1150 mm
Net Weight	500kgs
Application Materials	Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc.

Exhibition and Inspection

Packaging and Logistics

Support and Services:

The 1390 CO2 Laser Cutting Machine is a high-precision, reliable cutting tool suitable for various materials such as acrylic, wood, paper, fabric, and more.

The product technical support and services for this machine include:

- Initial setup and installation guidance

- Training on machine operation and maintenance

- Troubleshooting assistance for technical issues

- Software updates and upgrades

- Replacement parts and repair services

- On-site technical support for complex issues

- Consultation on optimizing cutting parameters for different materials
